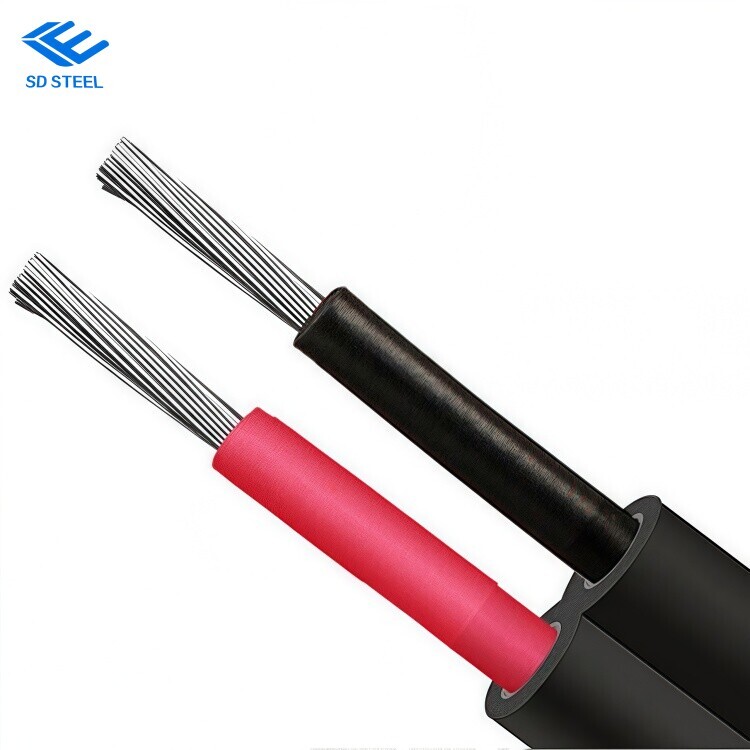

Product Parameters
apply
This product is designed for circuit connections in both indoor and outdoor solar photovoltaic systems under extreme weather conditions.
standard
2PfG 1169/08.2007 (PV1-F)
structure
Conductor: Twisted tin-plated copper wire compliant with DIN VDE 0295 and IEC 60228 Class 5 standards
Insulation: Crosslinking by Electron Beam, Low Smoke, Halogen Free Flame Retardant Composite
Sheath: Electron beam crosslinked, low smoke halogen free flame retardant composite, black
behaviour of electricity
Rated voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC
Maximum allowable alternating current voltage: 1.8 kV DC (conductor/conductor, no grounding system, no load on the circuit)
Insulation resistance: 1000 MΩ-km
Spark test: 6000 Vac (8400 Vdc)
Voltage rating: 6500 Vac for 5 minutes
hot property
Indoor temperature: -40℃ to +90℃
Maximum conductor temperature: 120℃ (20000h) per IEC/EN 60216-1
short circuit temperature: 200℃/5s
Thermal resistance test: EN 60216-2 (at +120°C)
High Pressure Test: EN 60811-3-1
Damp heat resistance: EN60068-2-78,85% humidity
mechanical behavior
Minimum bending radius: 4×OD (fixed), 5×OD (flexing)
Dynamic Permeation: 2 PfG 1169/08.2007 Appendix F
Slack propagation: 2 PfG 1169/08.2007 Appendix G
Tensile strength and elongation of insulation and sheath: EN 60811
Life expectancy: 25 years
chemical property
Ozone resistance: EN 50396 part 8.1.3 method B
Weathering and UV resistance: HD 605/A1
ammonia-tolerant
Good oil and chemical corrosion resistance
Good wear and aging resistance
Acid and alkali resistance: in accordance with EN 60811-2-1 (oxalic acid & sodium hydroxide)
EC metric
This cable complies with European standards CE 2006/95/EC (Low Voltage Directive) and RoHS 2002/95/EC (Restriction of Hazardous Substances Directive).
fire protecting performance
Flame retardancy performance as specified in EN 50265-2-1, IEC 60332-1, VDE 0482-332-1-2, and DIN EN 60332-1-2
Low Smoke Performance as Specified in IEC 61034 and EN 50268
Halogen-free performance as defined in EN 50267-2-1 and IEC 60754-1
EN 50267-2-2 and IEC 60754-2 compliant low-corrosive gases
Specifications and dimensions
carrying capacity
deviation coefficient of temperature
