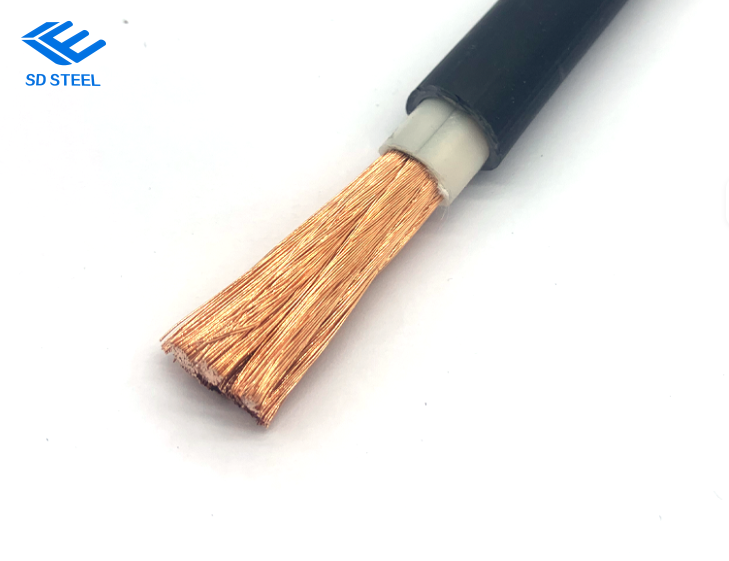

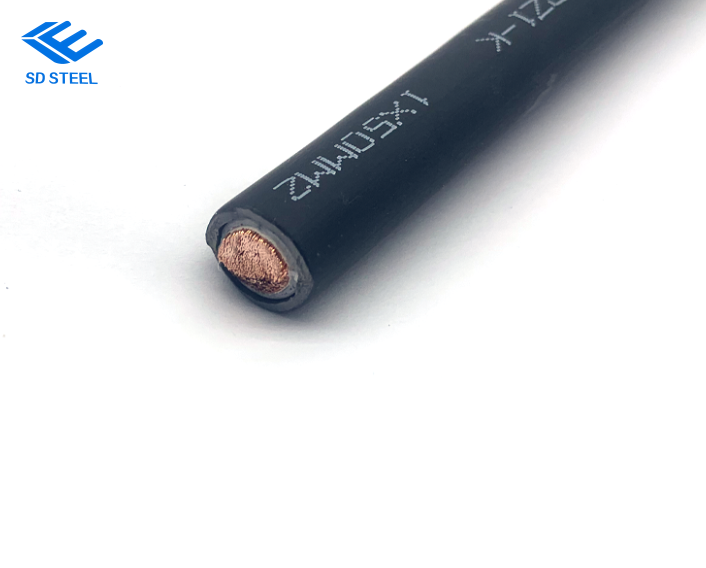

300/500V XLPE insulated, LSZH sheathed power cable (single core)
Single-core 300/500V XLPE insulated, LSZH sheathed power cables are mainly used in power plants, public transportation passenger systems, airports, petrochemical plants, hotels, hospitals, high-rise buildings, and other wiring applications.
Phone :+8618363568777
WhatsApp :+8618363568777
Email :sdkerry@shan-steelgroup.com
Leave a message now

Product Parameters

Standard

Standard conforms to IEC 60502-1


Fire protection standards

Flammability (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduce fire spread (vertical installation of cable bundles test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24;VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen-free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI 20-37/2-1; BS 6425-1*

No emission of corrosive gases

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI 20-37/2-2; BS 6425-2*

Minimum smoke emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

Toxic and harmful gases

NES 02-713; NF C 20-454

Note: * indicates that the standard has been superseded.
Rated voltage

300/500V


Cable structure

Conductor

Plain Annealed Copper, Multi-strand Stranded Compliant with IEC (EN) 60228 Class 2

Insulation

Cross-linked polyethylene composite

Outer Sheath

Thermoplastic LSZH compound, BS 7655-6.1 standard (LTS3 model; thermosetting LSZH compound, BS 7655-2.6 standard SW2-SW4 is also available). UV resistance, hydrocarbon resistance, oil resistance, rodent resistance, and termite resistance can all be provided as options.

Product Application

下载 (2)

Product Packaging

fGKUnDuHk

FAQ

Q1: What are your company's core advantages?

A1: Personalized customization, a stable supplier network, and professional export services.



Q2: What types of products does your company mainly produce?

A2: We specialize in producing various types of power cables, photovoltaic mounting systems, and cable trays.



Q3: What international standards do your products comply with?

A3: Our products comply with various international standards, depending on the product type. We can provide products that meet different international standards.



Q4: What is the lead time for delivery?

A4: Standard products are usually in stock and can be shipped within 7-15 days. Customized products require 15-45 days, depending on complexity. During peak seasons, there may be slight delays, and we will notify you in advance.



Q5: What if I find quality problems after receiving the goods?

A5: We provide comprehensive after-sales service. If you find any quality problems, please keep the relevant evidence and contact us promptly. We will arrange for return or compensation based on the specific situation to ensure customer rights.



Q6: Do you accept customized products?

A6: We offer OEM and ODM services. We can customize products according to customers' specific requirements, including specifications, colors, packaging, etc. Detailed technical parameters and requirements need to be provided.



Q7: What services can we provide?

A7: Accepted Delivery Terms: FOB, CFR, CIF;

Accepted Payment Currency: USD;

Accepted Payment Type: T/T, L/C;

Language Spoken: English, Chinese
