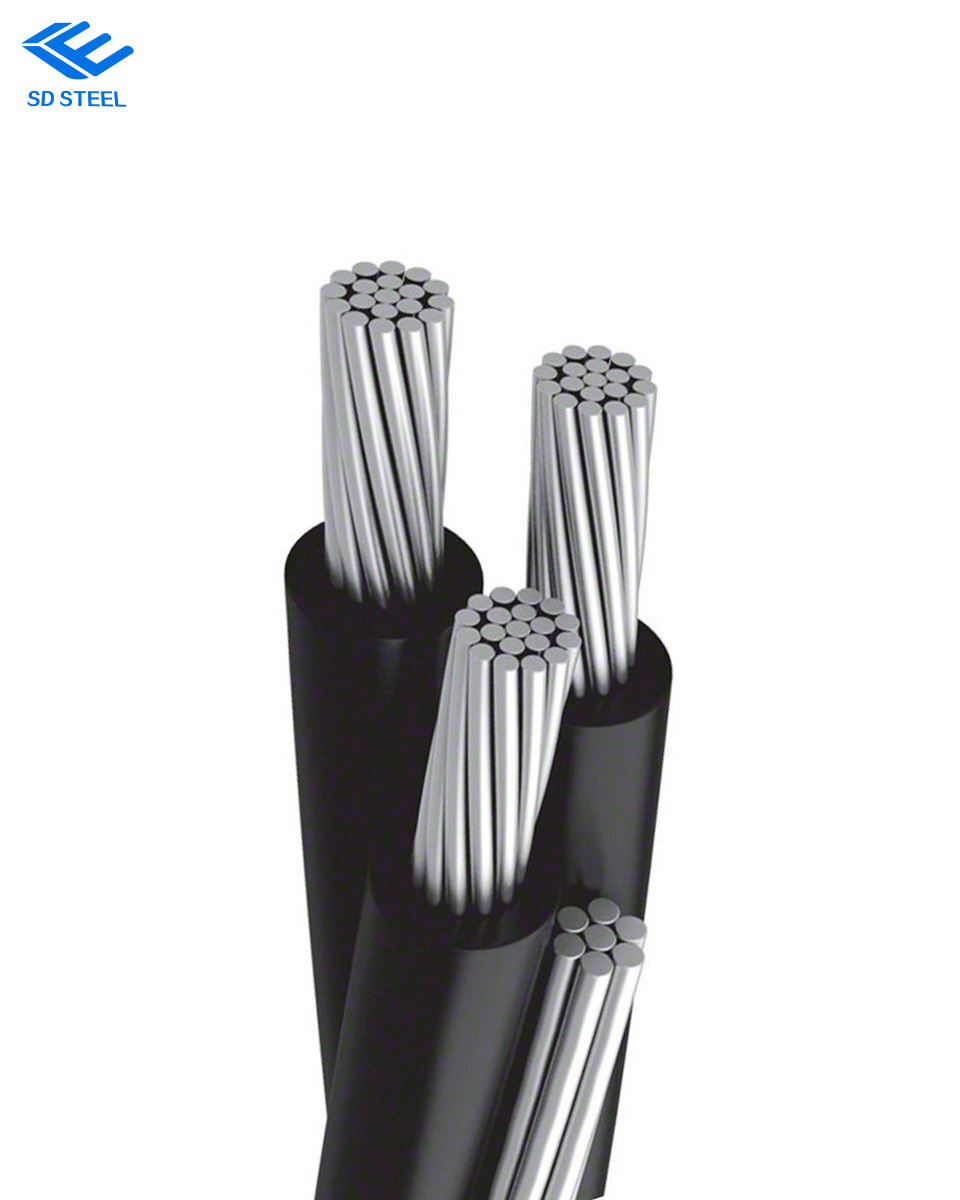

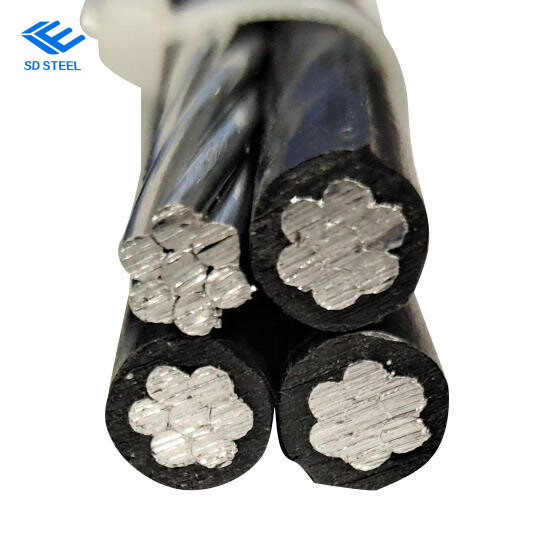

We produce the ABC Electric Cable used for overhead line(duplex, triplex, quadruplex) in IEC standard, ASTM ANSI/ICEA S-76-474   NF C 33-209 standard.

APPLICATION

ALUMINIUM NF C 33-209 service bundled conductors are used for tributary networks of power buildings and their internal networks.

CHARACTERISTICS

The bundled conductor cables have aluminum conductors, insulated with XLPE, they have good durability and thermal resistance.

Some other important cable characteristics are :

Ultraviolet radiation resistance,

Ozone resistance,

High dielectric strength,

Light and easy to handle.

INSTALLATION

The NF C 11-201 standard´s procedures determine the installation procedures for low voltage overhead lines.

These cables are NOT ALLOWED to be buried, even in conduits.

MARKING

Neutral :

211 NF C 33-209 211 « manufacturing number », « metric marks » ink printed.

Phase 1, 2, 3 :

the identification number is printed and embossed on insulation.

Pilot wire n°1 : continuous white line is printed on the insulation

Pilot wire n°2 : no marking

ELECTRICAL CHARACTERISTICS

Rated voltage : 0.6/1 kV

Test voltage : 4 kV AC

Resistance to voltage surges : 1.2/50µs with a positive or negative polarity and a peak value of 20 kV.

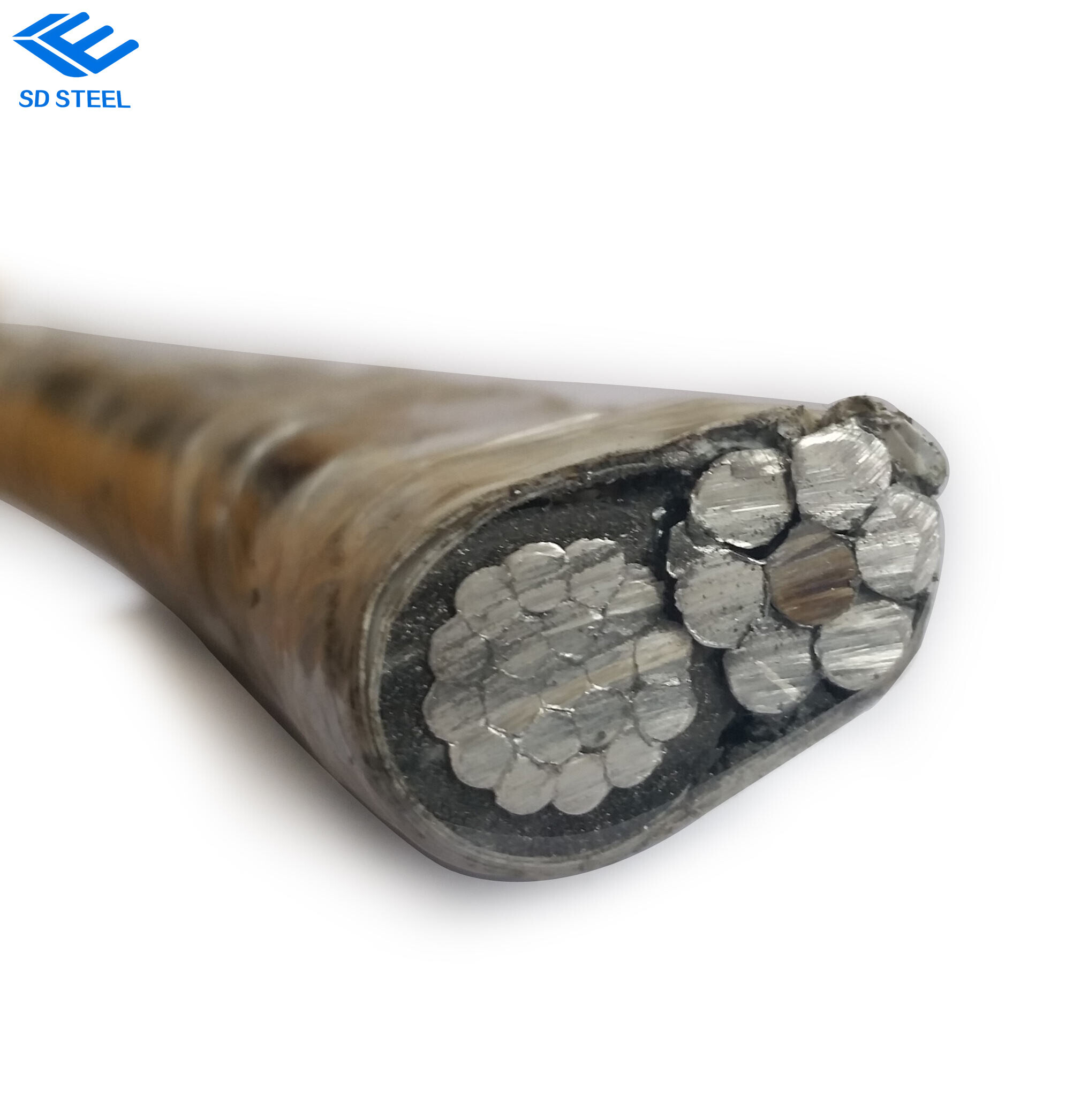

LV ABC cable(Aerial Bundle cable) with AAAC conductor
Service Drop Cable(ABC CABLE) are mainly used for electric power transmission, Duplex, Triplex, Quadruplex.
Service Drop Cable(ABC CABLE) are mainly used for electric power transmission, rebuiding of urban and forest regions.

TYPE ONE Service Drop wire ABC CABLE
ABC CABLE -aerial bundle cable :are mainly used for electric power transmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.

Applications
To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.

Construction

Phase Conductor construction:The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.

Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:

Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded

Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded

Aluminum alloy 6201-T81, concentric-lay-stranded
Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)

Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is available upon request.
Standards
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).

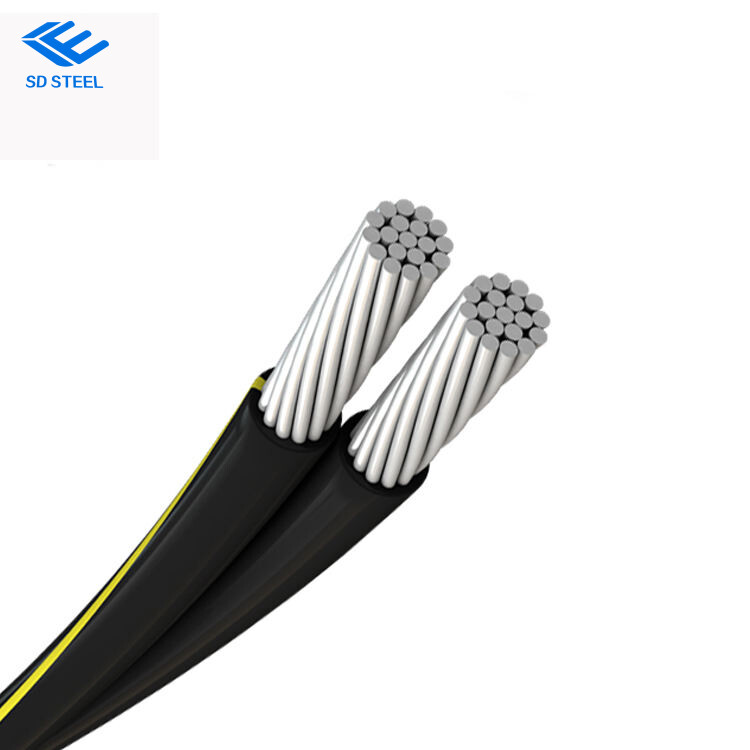

6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Data sheet of service drop cable
